The Architect P2280 EQ is a 12-channel, 2U multi-zone amplifier with 5-band EQ per zone, from the high-power Architect P series.

Channels bridgeable to 6, producing 400 W into 8 ohms
LightDrive anti-clipping protection
Front-panel EQ that can be covered by an included magnetic security panel
Input bussing, output pass-through and a global 12 V trigger

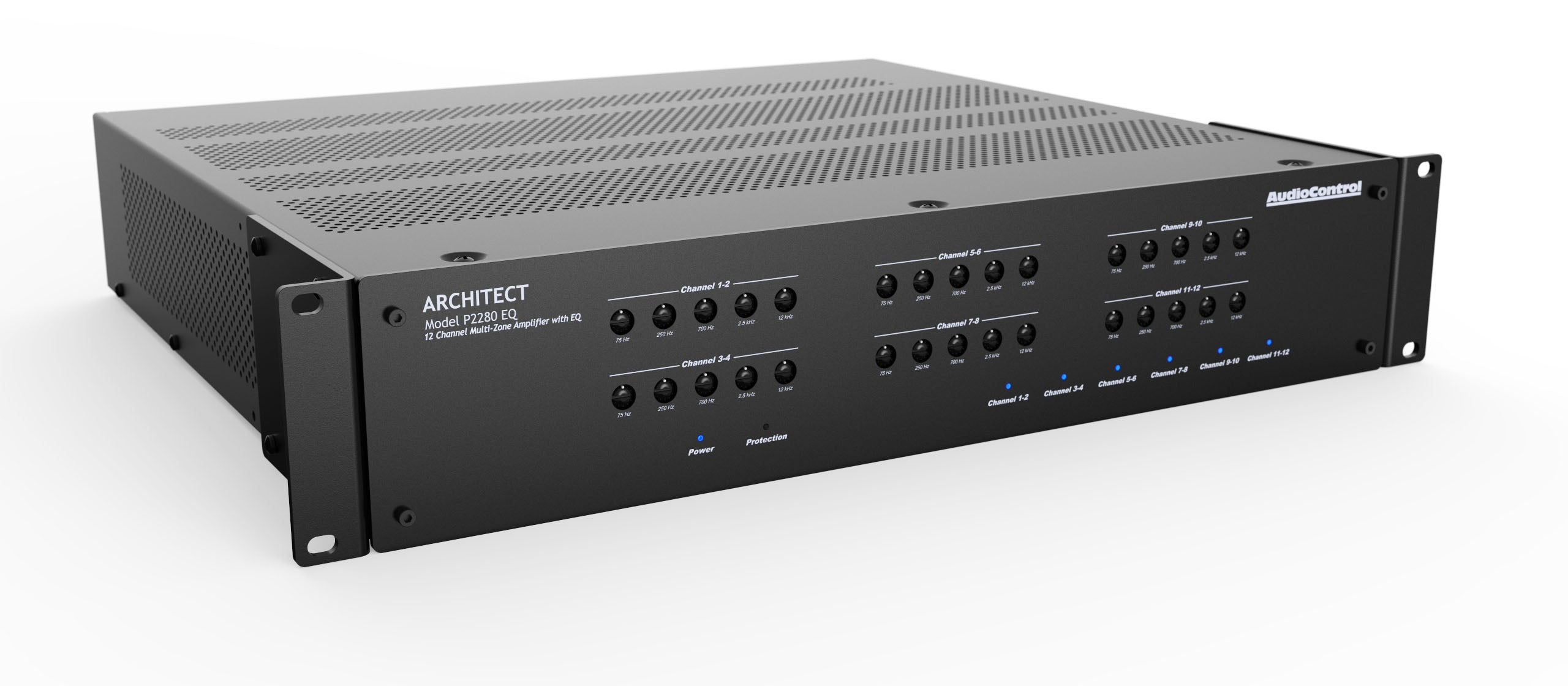

AudioControl Architect P2280 EQ 12-Channel Multi-Zone Amplifier

SKU: ACP-AZ-P2280

Channels: 12 (up to 6 zones)

Power: 100 W per channel at 8 Ω, 200 W at 4 Ω; 400 W bridged mono at 8 Ω

Inputs: 6 stereo local analog, 1 stereo bus coaxial digital, 1 stereo bus analog

Outputs: 12 amplifier channels, 1 stereo bus analog output

Equalizer: 5 bands per zone; +/- 12 dB

Dimensions: 19 in with rack ears (17 in without) x 15.5 x 3.5 in (2U)

Weight: 21 lb (9.5 kg)
