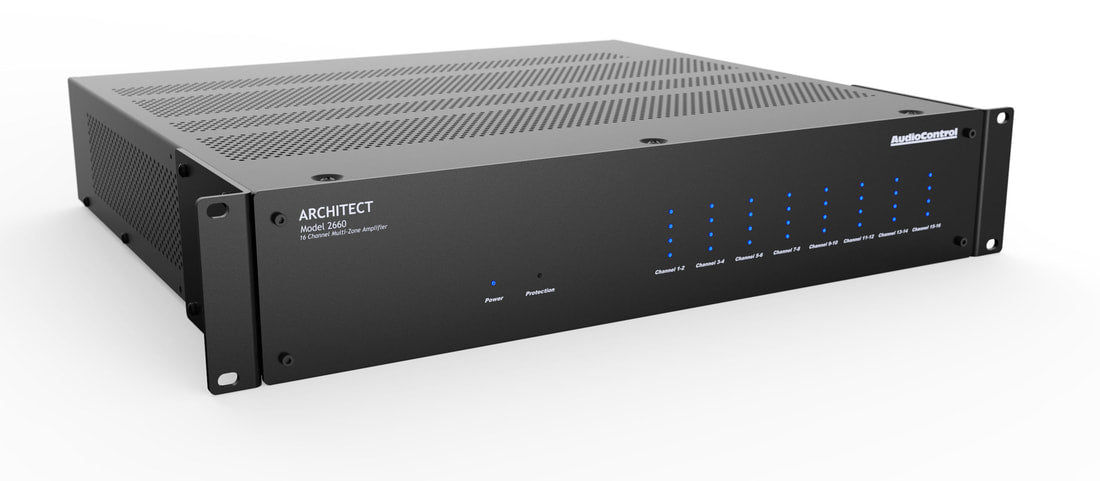

The Architect P2660 is a 16-channel, 2U multi-zone amplifier delivering 100 W per channel into 8 ohms, aimed at residential, custom install and pro audio users.

16 channels across up to 8 zones
8 bridgeable zone outputs, 400 W bridged into 8 ohms
Two bus inputs: digital coaxial S/PDIF and analog
LightDrive anti-clipping protection

AudioControl Architect P2660 16-Channel Multi-Zone Amplifier

SKU: ACP-AZ-P2660

Channels: 16

Power: 100 W per channel at 8 Ω, 200 W at 4 Ω; 400 W bridged at 8 Ω

Inputs: 8 stereo local analog, 1 stereo bus coaxial digital, 1 stereo bus analog

Outputs: 16 amplifier channels, 1 stereo bus analog loop

Damping factor: greater than 300

Signal-to-noise: greater than 105 dB (A-weighted)

Dimensions: 19 in with rack ears (17 in without) x 15.5 x 3.5 in (2U)

Weight: 20.5 lb (9.3 kg)

AudioControl Architect P2660 16-Channel Multi-Zone Amplifier

Specifications
