The Architect P800 is an 8-channel, 1U multi-zone amplifier from the Architect P series, delivering 100 W per channel into 8 ohms.

Eight channels of high-power output in a single rack space
Bridgeable to a 4-channel amplifier at 400 W
Standby draw under 1 W
LightDrive anti-clipping protection

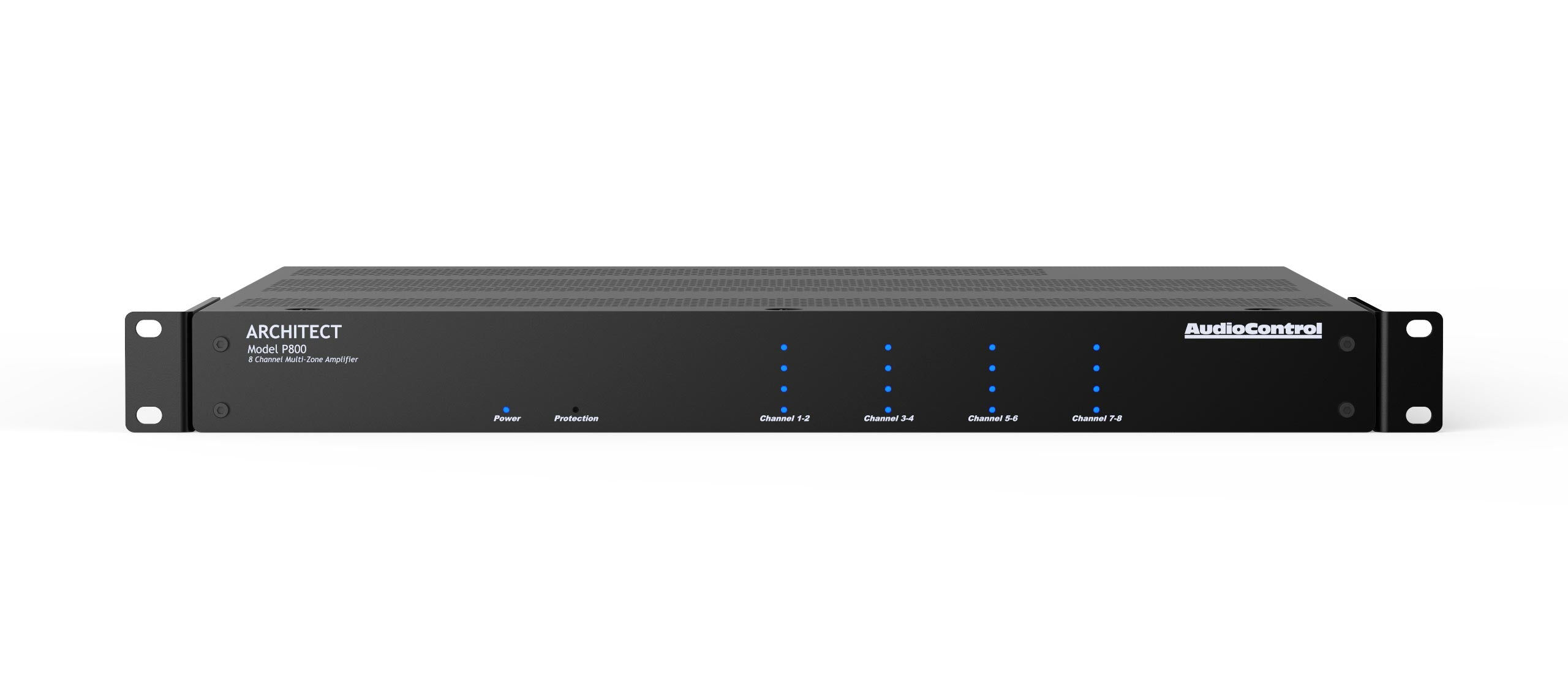

AudioControl Architect P800 8-Channel Multi-Zone Amplifier

SKU: ACP-AZ-P800

Channels: 8

Power: 100 W per channel at 8 Ω, 200 W at 4 Ω; 400 W bridged

Inputs: 4 stereo local analog, 1 stereo bus coaxial digital, 1 stereo bus analog

Outputs: 8 amplifier channels, 1 stereo bus analog output

Signal-to-noise: greater than 105 dB (A-weighted)

Dimensions: 19 in with rack ears (17 in without) x 15.8 x 1.75 in (1U)

Weight: 15 lb (6.8 kg)
